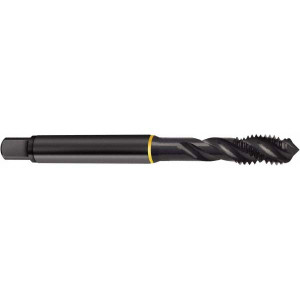

Guhring Spiral Flute Tap: #6-32, UNC, 3 Flute, Modified Bottoming, 2B & 3B Class of Fit, Cobalt, Oxide Finish 0.314" Thread Length, 2" OAL, Right Hand Flute, Right Hand Thread, H5, Series 4407 9044075035050 - 52365145
Brand: Guhring- SKU:
- 52365145
- ID:
- 769909
$20.54
Guhring Spiral Flute Tap: #6-32, UNC, 3 Flute, Modified Bottoming, 2B & 3B Class of Fit, Cobalt, Oxide Finish 0.314" Thread Length, 2" OAL, Right Hand Flute, Right Hand Thread, H5, Series 4407
Manufacturer Part #: 9044075035050
S/N: 52365145
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #6-32 |
| Thread Standard | UNC |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Thread Limit | H5 |
| Class Of Fit | 2B, 3B |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Alloy Steel, Alloy Tool Steel, Aluminum Alloy, Case Hardened Steel, Cast Iron, Ductile Iron, Free Cutting Steel, Heat Treated Steel, Malleable Cast Iron, Stainless Steel, Structural Steel, Tool Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Oversize | No |
| Threads per Inch | 32 |
| Overall Length (Inch) | 2 |
| Thread Length (Decimal Inch) | 0.3140 |
| Overall Length (Decimal Inch) | 2.0000 |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Neck Length (Decimal Inch) | 0.4340 |
| Tapping Depth (Decimal Inch) | 0.7480 |
| Square Size (Decimal Inch) | 0.1100 |
| Flute Style | Fast |
| Series | 4407 |
