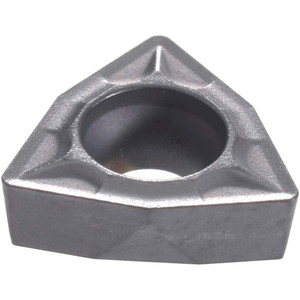

KYOCERA WCMX040204M1A PR1230 Carbide Indexable Drill Insert Megacoat Finish, 1/4" Inscribed Circle, 0.094" Thick, 1/64" Corner Radius, RH Cut, 80° Trigon

Manufacturer Part #: 8850625

S/N: 52633005

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleWCMX
Insert MaterialSolid Carbide
Manufacturer GradePR1230
Inscribed Circle (Inch)1/4
Inscribed Circle (Decimal Inch)0.2500
Cutting DirectionRight Hand
Corner Radius (Inch)1/64
ChipbreakerM1A
Coating ProcessPVD
ShapeTrigon
Hole Diameter (Decimal Inch)0.1100
Relief Angle7
Primary Workpiece MaterialSteel
Primary Workpiece Material CodeP
Ansi CodeWCMX040204M1A PR1230
Iso CodeWCMX040204M1A
StandardsANSI, ISO
Insert Size40204
Included Angle Degree80
Thickness (Decimal Inch - 4 Decimals)0.0940
Coating/FinishCoated
Insert Size Code07
