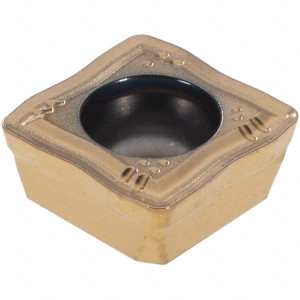

Ingersoll Cutting Tools Indexable Drill Insert SOMT09T308SK IN2505 CARB DRILLING INSERT 5523915 - 52669041
Brand: Ingersoll Cutting Tools- SKU:
- 52669041
- ID:
- 655712
$24.68
Ingersoll Cutting Tools Indexable Drill Insert SOMT09T308SK IN2505 CARB DRILLING INSERT
Manufacturer Part #: 5523915
S/N: 52669041
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SOMT |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (Decimal Inch) | 0.3620 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chipbreaker | SK |
| Series | SOMT-SK |
| Material Grade | Micrograin |
| Coating Process | PVD |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Ansi Code | SOMT09T308SK |
| Iso Code | SOMT09T308SK |
| Compatible Drill Style | QR |
| Insert Size | 09T308 |
| Width (Decimal Inch - 4 Decimals) | 0.362 |
| Length (Decimal Inch - 4 Decimals) | 0.362 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.166 |
| Coating/Finish | TiAlN, TiN |
| Insert Size Code | 09 |
| UNSPSC Code | 23242105 |
