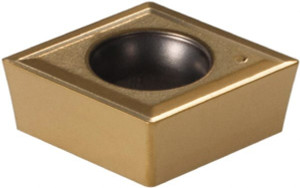

Iscar CCMT 3-0 IC-520N Cermet Turning Insert TiCN/TiN Finish, 9.7mm Long, 3/8" Inscribed Circle, 0.0079" Corner Radius, 5/32" Thick, 80° Diamond 5503773 - 52695186
Brand: Iscar- SKU:
- 52695186
- ID:
- 670210
$18.77
Iscar CCMT 3-0 IC-520N Cermet Turning Insert TiCN/TiN Finish, 9.7mm Long, 3/8" Inscribed Circle, 0.0079" Corner Radius, 5/32" Thick, 80° Diamond
Manufacturer Part #: 5503773
S/N: 52695186
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC520N |
| Coating/Finish | TiCN, TiN |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Insert Material | Cermet |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (mm) | 9.70 |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material | Stainless Steel, Steel |
| Primary Workpiece Material Code | M, P |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | C6, C7 |
| Chip Breaker | T |
| Insert Size Code | 3-0 |
