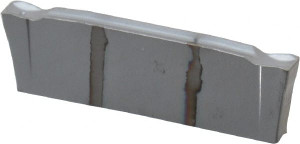

Iscar DGN 2002C IC-328 Carbide Cutoff Insert TiCN Finish, 0° Neutral Lead Angle, 2mm Cutting Width, 0.2mm Corner Radius, Series Do-Grip 6002506 - 52700275
Brand: Iscar- SKU:
- 52700275
- ID:
- 646819
$44.60
Iscar DGN 2002C IC-328 Carbide Cutoff Insert TiCN Finish, 0° Neutral Lead Angle, 2mm Cutting Width, 0.2mm Corner Radius, Series Do-Grip
Manufacturer Part #: 6002506
S/N: 52700275
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | DGN |
| Insert Size Code | 2002 |
| Insert Material | Carbide |
| Manufacturer Grade | IC328 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | C |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving, Parting |
| Series | Do-Grip |
| Coating Process | PVD |
| Overall Length (mm) | 19.90 |
| Overall Length (Decimal Inch) | 0.7835 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | DGN 2002C |
| Maximum Depth of Cut (mm) | 18.00 |
| Material Grade | C2, C3, C5, C6 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Coating/Finish | Coated |
| Single Or Double End | Double |
| UNSPSC Code | 23242105 |
