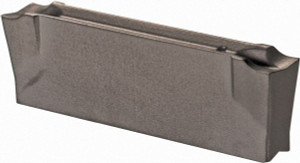

Iscar DGN 3102J IC-20 Carbide Cutoff Insert Uncoated, Neutral Lead Angle, Neutral Insert, 3.1mm Cutting Width, 0.2mm Corner Radius, Series Cut-Grip 6002345 - 52700507
Brand: Iscar- SKU:
- 52700507
- ID:
- 646833
$32.42
Iscar DGN 3102J IC-20 Carbide Cutoff Insert Uncoated, Neutral Lead Angle, Neutral Insert, 3.1mm Cutting Width, 0.2mm Corner Radius, Series Cut-Grip
Manufacturer Part #: 6002345
S/N: 52700507
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | DGN |
| Insert Size Code | 3102 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC20 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Cutting Width (mm) | 3.10 |
| Insert Holding Method | Self Grip |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | J |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving, Parting |
| Series | Cut-Grip |
| Coating Process | Uncoated |
| Overall Length (mm) | 20.10 |
| Overall Length (Decimal Inch) | 0.7910 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | DGN 3102J |
| Maximum Depth of Cut (mm) | 18.01 |
| Material Grade | C2, C3 |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Coating/Finish | Uncoated |
| Single Or Double End | Single |
