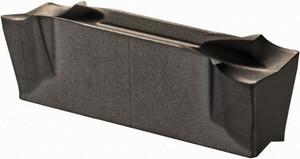

Iscar DGN 5003J IC-20 Carbide Cutoff Insert Uncoated, Neutral Lead Angle, Neutral Insert, 5mm Cutting Width, 0.3mm Corner Radius, Series Cut-Grip 6002381 - 52700697
Brand: Iscar- SKU:
- 52700697
- ID:
- 646846
$43.11
Iscar DGN 5003J IC-20 Carbide Cutoff Insert Uncoated, Neutral Lead Angle, Neutral Insert, 5mm Cutting Width, 0.3mm Corner Radius, Series Cut-Grip
Manufacturer Part #: 6002381
S/N: 52700697
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | DGN |
| Insert Size Code | 5003 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC20 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Cutting Width (mm) | 5.00 |
| Insert Holding Method | Self Grip |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Chipbreaker | J |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving, Parting |
| Series | Cut-Grip |
| Coating Process | Uncoated |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | DGN 5003J |
| Material Grade | C2, C3 |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Single Or Double End | Single |
