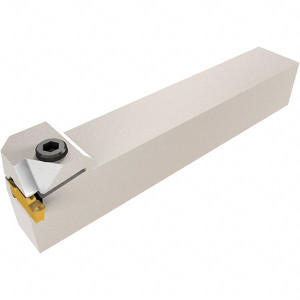

Iscar 0.197" Max Depth, 0.118" to 0.236" Width, Internal or External Left Hand Indexable Face Grooving Toolholder 6" OAL, 1" x 1" Shank, Uses HFPL Inserts, HFHP Toolholder, Series Heliface 2500258 - 52721172
Brand: Iscar- SKU:
- 52721172
- ID:
- 685428
$297.16
Iscar 0.197" Max Depth, 0.118" to 0.236" Width, Internal or External Left Hand Indexable Face Grooving Toolholder 6" OAL, 1" x 1" Shank, Uses HFPL Inserts, HFHP Toolholder, Series Heliface
Manufacturer Part #: 2500258
S/N: 52721172
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | HFHP |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Insert Holding Method | Clamp |
| Insert Compatibility | HFPL |
| Compatible Insert Size Code | HGPL 4 - 6 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2200 |
| Head Height (Decimal Inch) | 1.3500 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Standards | ISO 13399 |
| Maximum Groove Outside Diameter (Decimal Inch) | 78.7400 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 0.9500 |
| Complete Insert Compatibility | HFPL 3003, HFPL 3015, HFPL 4004, HFPL 4020, HFPL 5004, HFPL 5025, HFPL 6004, HFPL 6030 |
| Coolant Through | No |
