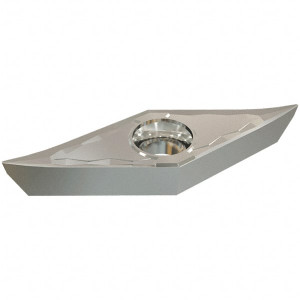

Iscar VCGT 220530-AS IC-2 Carbide Turning Insert Uncoated, 22.1mm Long, 1/2" Inscribed Circle, 3mm Corner Radius, 7/32" Thick, 35° Diamond, Series Isoturn 5540015 - 52741634
Brand: Iscar- SKU:
- 52741634
- ID:
- 670249
$47.45
Iscar VCGT 220530-AS IC-2 Carbide Turning Insert Uncoated, 22.1mm Long, 1/2" Inscribed Circle, 3mm Corner Radius, 7/32" Thick, 35° Diamond, Series Isoturn
Manufacturer Part #: 5540015
S/N: 52741634
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Included Angle | 35.0 |
| Manufacturer Grade | IC20 |
| Coating/Finish | Uncoated |
| Insert Thickness (Inch) | 7/32 |
| Insert Thickness (Decimal Inch) | 0.2189 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.50 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (mm) | 22.10 |
| Insert Length (Decimal Inch) | 0.8701 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | AS |
| Insert Size Code | 220 |
