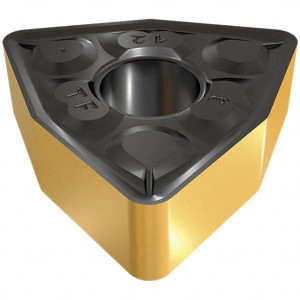

Iscar WNMG 431-TF IC507 Carbide Turning Insert TiCN/TiN Finish, 8.7mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Trigon, Series Isoturn 5504735 - 52743754
Brand: Iscar- SKU:
- 52743754
- ID:
- 670872
$20.98
Iscar WNMG 431-TF IC507 Carbide Turning Insert TiCN/TiN Finish, 8.7mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Trigon, Series Isoturn
Manufacturer Part #: 5504735
S/N: 52743754
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC507 |
| Coating/Finish | TiCN, TiN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (mm) | 8.70 |
| Insert Length (Decimal Inch) | 0.3425 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | Submicron |
| Chip Breaker | TF |
| Insert Size Code | 431 |
