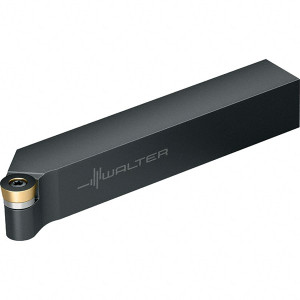

Walter Tools LH SRSC Neutral Rake Indexable Turning Toolholder 25.4mm x 1" Shank, Takes RC.T 43.. Inserts 5523277 - 53061065
Brand: Walter Tools- SKU:
- 53061065
- ID:
- 687553
$203.07
Walter Tools LH SRSC Neutral Rake Indexable Turning Toolholder 25.4mm x 1" Shank, Takes RC.T 43.. Inserts
Manufacturer Part #: 5523277
S/N: 53061065
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | SRSC |
| Hand of Holder | Left Hand |
| Lead Angle | 0.0 |
| Insert Compatibility | RC.T 43.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width (mm) | 25.40 |
| Overall Length (mm) | 152.40 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | RCT 43 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.4460 |
| Head Length (mm) | 36.73 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Standards | ANSI, ISO |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
