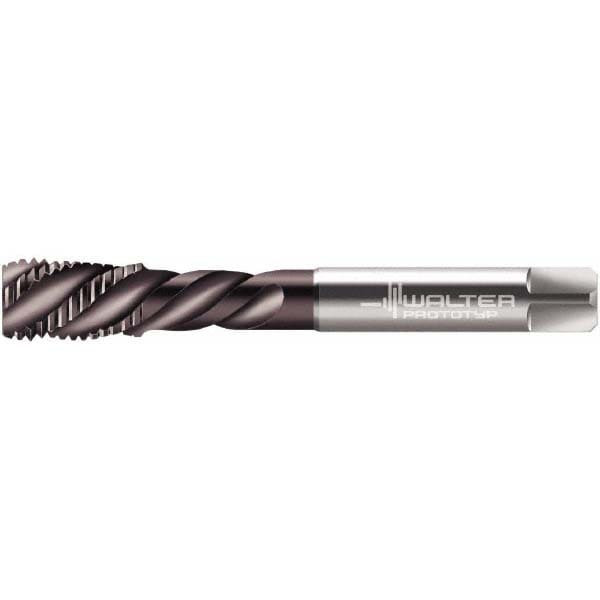

Walter Prototyp Spiral Flute Tap: M16x2.00 Metric, 4 Flutes, Modified Bottoming, 6HX Class of Fit, Powdered Metal, Hardlube Coated 20 mm Thread Length, 110 mm OAL, Left Hand Thread, Series EP2056382 6245608 - 53064085
Brand: Walter Prototyp- SKU:
- 53064085
- ID:
- 772468
$243.27
Walter Prototyp Spiral Flute Tap: M16x2.00 Metric, 4 Flutes, Modified Bottoming, 6HX Class of Fit, Powdered Metal, Hardlube Coated 20 mm Thread Length, 110 mm OAL, Left Hand Thread, Series EP2056382
Manufacturer Part #: 6245608
S/N: 53064085
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M16x2 |
| Thread Standard | Metric |
| Chamfer | Modified Bottoming |
| Material | Powdered Metal |
| Class Of Fit | 6HX |
| Coating/Finish | Hardlube |
| Thread Direction | Left Hand |
| Coolant Through | No |
| Material Application | Aluminum, Cast Steel, Gray Cast Iron, Malleable Cast Iron, Non-Ferrous Metal, Spheroidal Cast Iron, Stainless Steel, Steel, Vermicular Cast Iron |
| Number Of Flutes | 4 |
| Flute Direction | Left Hand |
| Helix Angle | 45 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.7874 |
| Thread Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Thread Pitch (mm) | 2.00 |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Neck Length (Decimal Inch) | 1.3780 |
| Tapping Depth (Decimal Inch) | 2.1654 |
| Tapping Depth (mm) | 55.00 |
| Square Length (mm) | 12.00 |
| Square Length (Decimal Inch) | 0.4720 |
| Square Size (Decimal Inch) | 0.3540 |
| Square Size (mm) | 9.00 |
| Flute Style | Fast |
| Series | EP2056382 |
| UNSPSC Code | 23241600 |
