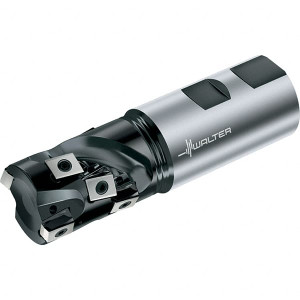

Walter Tools 1-1/2" Cut Diam, 1.772" Max Depth, 1-1/2" Shank Diam, Weldon Shank, 5.315" OAL, Indexable Square-Shoulder End Mill F5138 Toolholder, Uses Multiple Insert Styles, 90° Lead Angle, Through Coolant, Series Blaxx 6365036 - 53083531
Brand: Walter Tools- SKU:
- 53083531
- ID:
- 680446
$1,388.10
Walter Tools 1-1/2" Cut Diam, 1.772" Max Depth, 1-1/2" Shank Diam, Weldon Shank, 5.315" OAL, Indexable Square-Shoulder End Mill F5138 Toolholder, Uses Multiple Insert Styles, 90° Lead Angle, Through Coolant, Series Blaxx
Manufacturer Part #: 6365036
S/N: 53083531
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Depth of Cut (Decimal Inch) | 1.7720 | |
| Cutter Style | F5138 | |
| Shank Type | Weldon Flat | |
| Shank Diameter (Decimal Inch) | 1.5000 | |
| Shank Diameter (Inch) | 1-1/2 | |
| Insert Holding Method | Screw | |
| Series | Blaxx | |
| Lead Angle | 90 | |
| Shank Length (Decimal Inch) | 3.3460 | |
| Head Length (Decimal Inch) | 1.9690 | |
| Primary Workpiece Material | Universal | |
| Primary Workpiece Material Code | K, M, N, P, S | |
| Secondary Workpiece Material | Glass, Graphite | |
| Secondary Workpiece Material Code | O | |
| Standards | ISO | ANSI |
| End Mill Type | Helical | |
| Insert Compatibility | LNHU 130608R-L55T, LNHU 130608R-L85T, LNHU 130612R-L55T, LNHU 130616R-L55T, LNHU 130620R-L55T, LNHU 130625R-L55T, LNHU 130630R-L55T, LNHU 130632R-L55T | |
| ISO Number | F5138.UW38.038.Z02.45 | |
| Manufacturers Catalog Number | F5138.UW38.038.Z02.45 | |
| Number Of Flutes | 2 | |
| Number Of Cutter Inserts | 8 | |
| Coolant Through | Yes |
