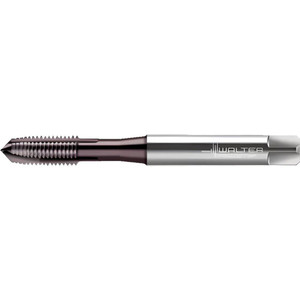

Walter Prototyp Spiral Point Tap: M5x0.8 Metric, 3 Flutes, Plug Chamfer, 6H Class of Fit, High-Speed Steel-E-PM, THL Coated 13.00 mm Thread Length, 70.00 mm OAL, Left Hand, Series EP2021382 6432510 - 53084620
Brand: Walter Prototyp- SKU:
- 53084620
- ID:
- 776719
$78.05
Walter Prototyp Spiral Point Tap: M5x0.8 Metric, 3 Flutes, Plug Chamfer, 6H Class of Fit, High-Speed Steel-E-PM, THL Coated 13.00 mm Thread Length, 70.00 mm OAL, Left Hand, Series EP2021382
Manufacturer Part #: 6432510
S/N: 53084620
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M5x0.8 |
| Thread Standard | Metric |
| Chamfer | Plug |
| Material | HSS |
| Class Of Fit | 6H |
| Coating/Finish | THL |
| Thread Direction | Left Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 31.75 |
| Overall Length (Decimal Inch) | 2.7559 |
| Thread Pitch (Decimal Inch) | 0.0310 |
| Overall Length (mm) | 70 |
| Thread Pitch (mm) | 0.8 |
| Thread Length (Decimal Inch) | 0.5118 |
| Thread Length (mm) | 13.00 |
| Shank Diameter (mm) | 6 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Application | Through-Hole Threading |
| Neck Length (mm) | 12.00 |
| Neck Length (Decimal Inch) | 0.4724 |
| Square Size (mm) | 4.90 |
| Series | EP2021382 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
