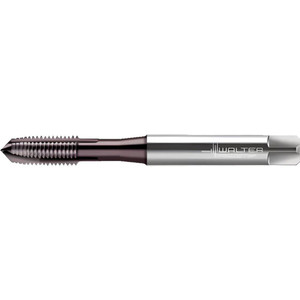

Walter Prototyp Spiral Point Tap: M6x1 Metric, 3 Flutes, Plug Chamfer, 6H Class of Fit, High-Speed Steel-E-PM, THL Coated 15.00 mm Thread Length, 80.00 mm OAL, Left Hand, Series EP2021382 6432511 - 53084646
Brand: Walter Prototyp- SKU:
- 53084646
- ID:
- 776721
$89.23
Walter Prototyp Spiral Point Tap: M6x1 Metric, 3 Flutes, Plug Chamfer, 6H Class of Fit, High-Speed Steel-E-PM, THL Coated 15.00 mm Thread Length, 80.00 mm OAL, Left Hand, Series EP2021382
Manufacturer Part #: 6432511
S/N: 53084646
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M6x1 |
| Thread Standard | Metric |
| Chamfer | Plug |
| Material | HSS |
| Class Of Fit | 6H |
| Coating/Finish | THL |
| Thread Direction | Left Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 25.4 |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80 |
| Thread Pitch (mm) | 1 |
| Thread Length (Decimal Inch) | 0.5906 |
| Thread Length (mm) | 15.00 |
| Shank Diameter (mm) | 6 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Application | Through-Hole Threading |
| Neck Length (mm) | 15.00 |
| Neck Length (Decimal Inch) | 0.5906 |
| Square Size (mm) | 4.90 |
| Series | EP2021382 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
