Tungaloy PNCU0905 Grade TH10 Carbide Milling Insert 6860117 - 53417887
Brand: Tungaloy- SKU:
- 53417887
- ID:
- 663353
$36.45

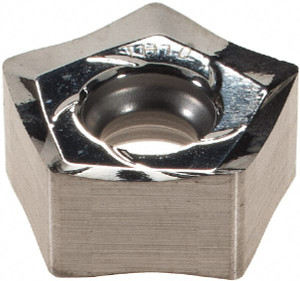

Tungaloy PNCU0905 Grade TH10 Carbide Milling Insert
Manufacturer Part #: 6860117
S/N: 53417887
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | PNCU |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Pentagon |
| Manufacturer Grade | TH10 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 10 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2460 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Maximum Depth of Cut (mm) | 6.40 |
| Insert Size Code | 0905 |
| Material Grade | P10, M10, K10, N10 |
| Inscribed Circle (Decimal Inch) | 0.4800 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | PNCU |
| Coating Process | Uncoated |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron, Hard Material, Non-Ferrous Metal, Superalloys & Titanium |
| Primary Workpiece Material Code | K, H, N, S |
| Ansi Code | PNCU0905GNFR-AJ TH10 |
| Iso Code | PNCU0905GNFR-AJ TH10 |
| Standards | ISO |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | PNCU0905GNFR-AJ |
| Cutter Series Compatibility | TEN09, EEN09 |
| Chip Breaker | AJ |
| Material Application | Cast Iron, Hard Material, Non-Ferrous Metal, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 108 |
| Width (Decimal Inch - 4 Decimals) | 0.4800 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4800 |
