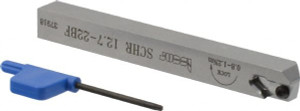

Iscar 0.315" Max Depth, 0.02" to 0.098" Width, External Right Hand Indexable Grooving Toolholder 4.921" OAL, 1/2" x 1/2" Shank, Uses SCIR 22 Inserts, SCH Toolholder, Series Swisscut 2802079 - 53538450
Brand: Iscar- SKU:
- 53538450
- ID:
- 685458
$201.06
Iscar 0.315" Max Depth, 0.02" to 0.098" Width, External Right Hand Indexable Grooving Toolholder 4.921" OAL, 1/2" x 1/2" Shank, Uses SCIR 22 Inserts, SCH Toolholder, Series Swisscut
Manufacturer Part #: 2802079
S/N: 53538450
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Type | External Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Toolholder Style | SCH |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Insert Holding Method | Clamp |
| Insert Compatibility | SCIR 22 |
| Compatible Insert Size Code | SCIR-22-MTR-ISO, SCIR/L 22 BR/BL/BRA/BLA, SCIR/L 22 ER/EL/ERA/ELA, SCIR/L-22-AD, SCIR/L-22-AR/AL, SCIR/L-22-MTR/MTL, SCIR/L-22-N/R/L, SCIR/L-22-NP, SCIR/L-22-NX |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Swisscut |
| Overall Length (Decimal Inch) | 4.921 |
| Multi-use Tool | Yes |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | SCIR 22-050N-00, SCIR 22-050R12-00, SCIR 22-100N-00, SCIR 22-150N-00, SCIR 22-150NP05, SCIR 22-200N-10, SCIR 22-200NP05, SCIR 22-250NP05, SCIR 22-AR00-25K16, SCIR 22-AR10-25K8, SCIR 22-BR00-05K7, SCIR 22-BR10-05K7, SCIR 22-EL00-07K0, SCIR 22-ER00-07K0 |
| Coolant Through | No |
