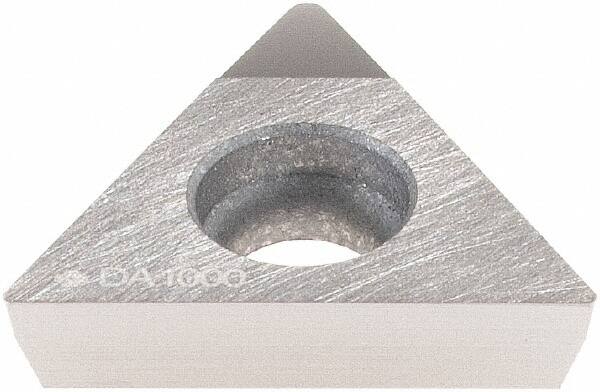

Sumitomo NFTPGA21.51 DA1000 Polycrystalline Diamond (PCD) Turning Insert 1/4" Inscribed Circle, 1/64" Corner Radius, 60° Triangle 16HQCAB - 53957841
Brand: Sumitomo- SKU:
- 53957841
- ID:
- 677700
$63.43
Sumitomo NFTPGA21.51 DA1000 Polycrystalline Diamond (PCD) Turning Insert 1/4" Inscribed Circle, 1/64" Corner Radius, 60° Triangle
Manufacturer Part #: 16HQCAB
S/N: 53957841
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 11 |
| Insert Style | NF-TPGA |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60.0 |
| Manufacturer Grade | DA1000 |
| Coating/Finish | Coated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Series | TPG |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Polycrystalline Diamond |
| Insert Shape | Triangle |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1070 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Neutral |
| Insert Length (Decimal Inch) | 0.1142 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | NFTPGA21.51 |
| Iso Code | NF-TPGW110204 |
| Standards | ANSI, ISO 13399 |
| Chip Breaker | NF |
| Rake Angle | 0 |
| Insert Size Code | 21.5 |
