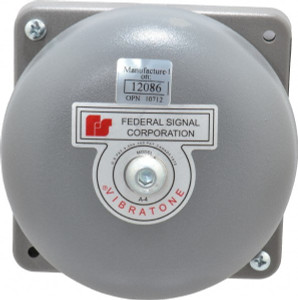

Federal Signal 4" Diam, 120 Volt Bell 0.08 Amps, 98 Decibles at 10 ft., Vibrating 504-120-1 - 54028071
Brand: Federal Signal Corporation- SKU:
- 54028071
- ID:
- 474902
$359.74
Federal Signal 4" Diam, 120 Volt Bell 0.08 Amps, 98 Decibles at 10 ft., Vibrating
Manufacturer Part #: 504-120-1
S/N: 54028071
UNSPSC: 46171600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Type | Bell |
| Maximum Decibel Rating | 98 |
| Mount Type | Wall |
| Explosion Proof | No |
| Weatherproof | No |
| Vibrating | Yes |
| Voltage | 120V |
| Maximum Operating Temperature | 150 F, 66 C |
| Minimum Operating Temperature | -31 F, -35 C |
| Overall Width (mm) | 143.30 |
| Overall Width | 5.64in, 143.3mm |
| Overall Height | 4.73in, 120.1mm |
| Overall Width (Decimal Inch - 4 Decimals) | 5.6400 |
| Overall Height (Mm - 5 Decimals) | 120.10 |
| Overall Height (Decimal Inch) | 4.7300 |
| Overall Diameter (Decimal Inch - 4 Decimals) | 4.0000 |
| Standards | UL |
| Overall Diameter | 4in |
| Amperage Rating | 0.08 |
| Decibels At TenFeet (dB) | 98 |
