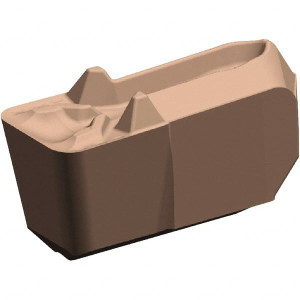

Kennametal EG0312M03U02GUP KCU10 Carbide Grooving Insert AlTiN Finish, Neutral, 3.13mm Cutting Width, 2.2mm Max Depth, Series Beyond Evolution 6013033 - 54446448
Brand: Kennametal- SKU:
- 54446448
- ID:
- 650331
$25.17
Kennametal EG0312M03U02GUP KCU10 Carbide Grooving Insert AlTiN Finish, Neutral, 3.13mm Cutting Width, 2.2mm Max Depth, Series Beyond Evolution
Manufacturer Part #: 6013033
S/N: 54446448
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | EG-U |
| Cutting Width (Decimal Inch) | 0.123 |
| Cutting Width (mm) | 3.13 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0870 |
| Maximum Depth of Cut (mm) | 2.20 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Rake | Positive |
| Insert Size | 3 |
| Cutting Height (mm) | 4.02 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.1580 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Lead Angle | 2 |
| Multi-use Tool | No |
| Series | Beyond Evolution |
| Coating Process | PVD |
| Rake Angle | 27 |
| Overall Length (Decimal Inch) | 0.378 |
| Insert Thickness (Decimal Inch) | 0.1580 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GUP |
| Overall Width (mm) | 3.13 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.123 |
| Coating/Finish | AlTiN |
