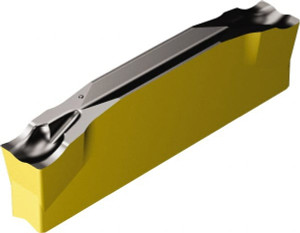

Sandvik Coromant N123E202000002-CM 4325 Carbide Cutoff Insert TiCN/Al2O3/TiN Finish, 0° Neutral Lead Angle, Neutral Insert, 2mm Cutting Width, 0.2mm Corner Radius, Series CoroCut 1-2 6532079 - 54731229
Brand: Sandvik Coromant- SKU:
- 54731229
- ID:
- 647766
$58.53
Sandvik Coromant N123E202000002-CM 4325 Carbide Cutoff Insert TiCN/Al2O3/TiN Finish, 0° Neutral Lead Angle, Neutral Insert, 2mm Cutting Width, 0.2mm Corner Radius, Series CoroCut 1-2
Manufacturer Part #: 6532079
S/N: 54731229
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123x2 |
| Insert Size Code | E |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4325 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Series | CoroCut 1-2 |
| Coating Process | MTCVD |
| Overall Length (mm) | 19.30 |
| Overall Length (Decimal Inch) | 0.7598 |
| Manufacturers Catalog Number | N123E2-0200-0002-CM 4325 |
| Maximum Depth of Cut (mm) | 19.00 |
| Insert Seat Size | E |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0787 |
| Overall Width (mm) | 2.00 |
| Coating/Finish | TiCN/Al2O3/TiN |
| UNSPSC Code | 23242105 |
