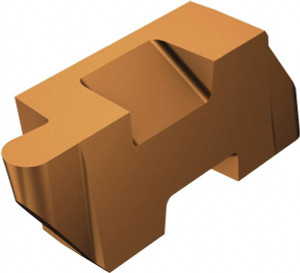

Sandvik Coromant TLRP3062R 1125 Carbide Grooving Insert TiAlN Finish, RH, 3.15mm Cutting Width, 3.81mm Max Depth, Series Top Lok 5753535 - 54732623

Sandvik Coromant TLRP3062R 1125 Carbide Grooving Insert TiAlN Finish, RH, 3.15mm Cutting Width, 3.81mm Max Depth, Series Top Lok 5753535 - 54732623

Brand:   Sandvik Coromant
SKU:
54732623
ID:
651439
callling
$56.45
Current Stock:
Adding to cart… The item has been added

Sandvik Coromant

Sandvik Coromant TLRP3062R 1125 Carbide Grooving Insert TiAlN Finish, RH, 3.15mm Cutting Width, 3.81mm Max Depth, Series Top Lok

Manufacturer Part #: 5753535

S/N: 54732623

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleTLRP
Cutting Width (Decimal Inch)0.1240
Cutting Width (mm)3.15
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.1500
Maximum Depth of Cut (mm)3.81
Insert MaterialSolid Carbide
Corner Radius (Decimal Inch)0.0620
Corner Radius (mm)1.57
RakePositive
Insert Size3R
Cutting Height (mm)8.74
Maximum Depth Of Cut Range (Decimal Inch)0.1500 to 0.2000
Cutting Height (Decimal Inch)0.3440
Maximum Depth Of Cut Range (mm)3.00 to 4.00
Multi-use ToolYes
SeriesTop Lok
Coating ProcessPVD
Iso CodeTLRP-3062R 1125
Minimum Corner Radius (Decimal Inch)0.0620
Manufacturers Catalog NumberTLRP-3062R 1125
Insert Thickness (Decimal Inch)0.3440
UNSPSC Code23242105
Chip BreakerTLRP
Insert Seat Size3
Overall Width (Decimal Inch - 4 Decimals)0.1240
Coating/FinishTiAlN
