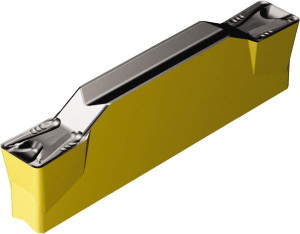

Sandvik Coromant N123K206000004-TM 4325 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 6mm Cutting Width, 23.4mm Max Depth, Series CoroCut 1-2 6532133 - 54746714
Brand: Sandvik Coromant- SKU:
- 54746714
- ID:
- 651497
$74.55
Sandvik Coromant N123K206000004-TM 4325 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 6mm Cutting Width, 23.4mm Max Depth, Series CoroCut 1-2
Manufacturer Part #: 6532133
S/N: 54746714
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123x2 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Cutting Width (mm) | 6.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.9210 |
| Maximum Depth of Cut (mm) | 23.40 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4325 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Rake | Positive |
| Insert Size | K2 |
| Cutting Height (mm) | 4.35 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | MT-CVD |
| Iso Code | N123K2-0600-0004-TM 4325 |
| Manufacturers Catalog Number | N123K2-0600-0004-TM 4325 |
| Insert Thickness (Decimal Inch) | 0.1713 |
| UNSPSC Code | 23242105 |
| Chip Breaker | TM |
| Insert Seat Size | K |
| Overall Width (mm) | 4.35 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1713 |
| Coating/Finish | TiCN/Al2O3/TiN |
