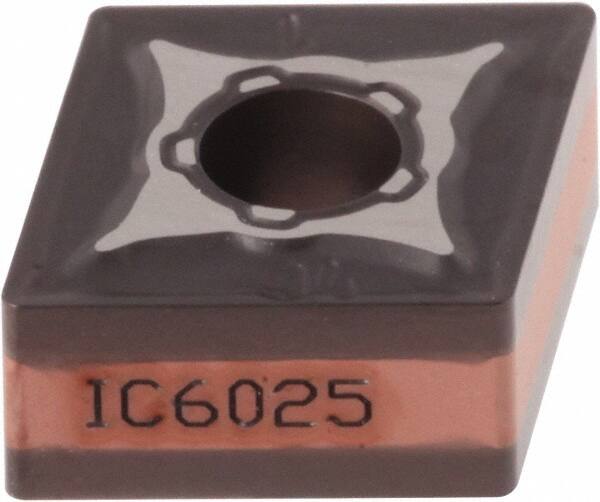

Iscar CNMG 331-M3M IC6025 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 9.68mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Isoturn 5510331 - 55025399
Brand: Iscar- SKU:
- 55025399
- ID:
- 670840
$16.30
Iscar CNMG 331-M3M IC6025 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 9.68mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Isoturn
Manufacturer Part #: 5510331
S/N: 55025399
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC6025 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Single Or Double End | Double |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (mm) | 9.68 |
| Insert Length (Decimal Inch) | 0.3810 |
| Primary Workpiece Material | P |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | None |
| Iso Code | CNMG 331-M3M |
| Standards | ISO 13399 |
| Chip Breaker | M3M |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing |
| Insert Size Code | 331 |
