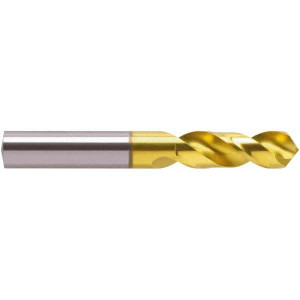

Guhring 6.2mm 118° Spiral Flute Cobalt Screw Machine Drill Bit TiN Finish, Right Hand Cut, 31mm Flute Length, 70mm OAL, Four Facet, Split Point, Straight Shank 9055200062000 - 55077317
Brand: Guhring- SKU:
- 55077317
- ID:
- 735067
$17.29
Guhring 6.2mm 118° Spiral Flute Cobalt Screw Machine Drill Bit TiN Finish, Right Hand Cut, 31mm Flute Length, 70mm OAL, Four Facet, Split Point, Straight Shank
Manufacturer Part #: 9055200062000
S/N: 55077317
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 6.20 |
| Drill Bit Size (Decimal Inch) | 0.2441 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Four Facet, Split |
| Primary Workpiece Material | Aluminum |
| Overall Length (mm) | 70.00 |
| Shank Diameter (mm) | 6.20 |
| Series | 5520 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.8540 |
| Maximum Drilling Depth (mm) | 21.70 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Standards | DIN 1897 |
| Flute Length (mm) | 31.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
