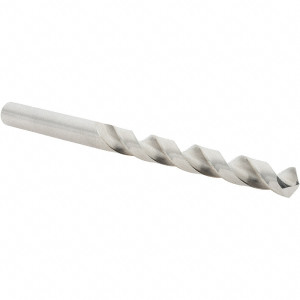

Guhring 23/64" 118° Cobalt Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 125mm OAL, Four Facet, Split Point 9055230091300 - 55084677
Brand: Guhring- SKU:
- 55084677
- ID:
- 720059
$28.59
Guhring 23/64" 118° Cobalt Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 125mm OAL, Four Facet, Split Point
Manufacturer Part #: 9055230091300
S/N: 55084677
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Steel, Cast Iron, Aluminum & Non-Ferrous |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | K, M, N, P |
| Shank Diameter (Decimal Inch) | 0.3594 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Spiral Type | Regular |
| Flute Length (mm) | 81.00 |
| Flute Length (Decimal Inch) | 3.1890 |
| Series | 5523 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 23/64 |
| Shank Diameter (mm) | 9.13 |
| Maximum Drilling Depth (Decimal Inch) | 2.6500 |
| Maximum Drilling Depth (mm) | 67.31 |
| Shank Length (mm) | 44 |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
