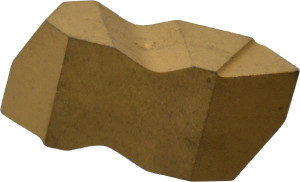

Kennametal NTP3R KC850 Carbide Threading Insert TiC/TiCN/TiN Finish, Internal/External, Partial Profile 60°, 2-5mm, 1.25-4mm, Series Top Notch 1113819 - 55317408
Brand: Kennametal- SKU:
- 55317408
- ID:
- 666952
$45.19
Kennametal NTP3R KC850 Carbide Threading Insert TiC/TiCN/TiN Finish, Internal/External, Partial Profile 60°, 2-5mm, 1.25-4mm, Series Top Notch
Manufacturer Part #: 1113819
S/N: 55317408
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NTP |
| Insert Material | Carbide |
| Manufacturer Grade | KC850 |
| Material Grade | C5, C6 |
| Thread Standard | Partial Profile 60 Degree |
| Insert Hand | Right Hand |
| Internal Pitch | 2.00 to 5.00 mm, 5 to 12 TPI |
| External Pitch | 1.25-4.00 mm, 6-20 TPI |
| Included Angle | 60 |
| Series | Top Notch |
| Coating Process | CVD |
| Tip to Top of Insert (Decimal Inch) | 0.0980 |
| Tip to Top of Insert (mm) | 2.49 |
| Corner Radius (Decimal Inch) | 0.0065 |
| Corner Radius (mm) | 0.17 |
| Thickness (mm) | 4.95 |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1949 |
| Finish Coating | TiC/TiCN/TiN |
| Thread Type | Internal, External |
| UNSPSC Code | 23291804 |
