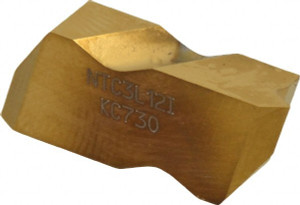

Kennametal NTC3L12I KC730 Carbide Threading Insert TiN Finish, Internal, UN, 12 TPI, Series Top Notch 1182209 - 55317804
Brand: Kennametal- SKU:
- 55317804
- ID:
- 666979
$40.75
Kennametal NTC3L12I KC730 Carbide Threading Insert TiN Finish, Internal, UN, 12 TPI, Series Top Notch
Manufacturer Part #: 1182209
S/N: 55317804
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NTC |
| Insert Material | Carbide |
| Manufacturer Grade | KC730 |
| Material Grade | C2, C3, C4 |
| Thread Standard | UN |
| Insert Hand | Left Hand |
| Internal Pitch | 12 TPI |
| Included Angle | 60degree |
| Series | Top Notch |
| Coating Process | PVD |
| Tip to Top of Insert (Decimal Inch) | 0.1480 |
| Tip to Top of Insert (mm) | 3.76 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10mm |
| Thickness (mm) | 4.95mm |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1949in |
| Finish Coating | Titanium Nitride |
| Thread Type | Internal |
| UNSPSC Code | 23291804 |
