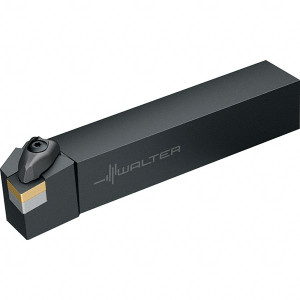

Walter Tools RH DCLN Negative Rake Indexable Turning Toolholder 1" x 1" Shank, Takes CN.. 43.., CN..1204.. Inserts 5097517 - 55534911
Brand: Walter Tools- SKU:
- 55534911
- ID:
- 687547
$202.66
Walter Tools RH DCLN Negative Rake Indexable Turning Toolholder 1" x 1" Shank, Takes CN.. 43.., CN..1204.. Inserts
Manufacturer Part #: 5097517
S/N: 55534911
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | DCLN |
| Hand of Holder | Right Hand |
| Lead Angle | 95.0 |
| Insert Compatibility | CN.. 43.., CN..1204.. |
| Insert Holding Method | Clamp |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | CN 43, CN1204 |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.2600 |
| Maximum Overhang (Inch) | 1.2600 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Width (mm) | 12.90 |
| Insert Width (Decimal Inch) | 0.5080 |
