Legris 1/2" Outside Diam, 3/8 NPT, Nickel Plated Brass Push-to-Connect Tube Female Connector 435 Max psi, Tube to Female NPT Connection, FKM O-Ring, Conforms to FDA Standards 3615 62 18 - 55765036

Legris 1/2" Outside Diam, 3/8 NPT, Nickel Plated Brass Push-to-Connect Tube Female Connector 435 Max psi, Tube to Female NPT Connection, FKM O-Ring, Conforms to FDA Standards 3615 62 18 - 55765036

Brand:   Legris
SKU:
55765036
ID:
537631
callling
$29.00
Current Stock:
Adding to cart… The item has been added

Parker Hannifin CorporationLegris

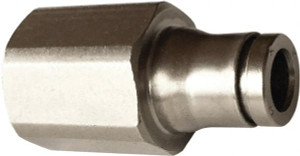

Legris 1/2" Outside Diam, 3/8 NPT, Nickel Plated Brass Push-to-Connect Tube Female Connector 435 Max psi, Tube to Female NPT Connection, FKM O-Ring, Conforms to FDA Standards

Manufacturer Part #: 3615 62 18

S/N: 55765036

UNSPSC: 27121700

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection TypeTube x FNPT x Tube x Female
MaterialNickel-Plated Brass
Tube Outside Diameter1/2
Maximum Working Pressure (Psi - 3 Decimals)435
Overall Length (Decimal Inch)1.5200
Thread TypeNPT
Minimum Work Temperature (F)-4
For Use WithCompressed Air, Grease, Water & Food
Special Item InformationConforms to FDA Standards
Vacuum Rating28 in-Hg
O Ring MaterialFKM
Maximum Work Temperature (Deg F - 3 Decimals)302
Product Service Code4720
UNSPSC Code27121700
