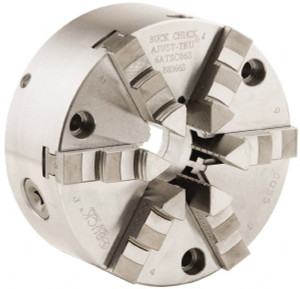

Buck Chuck 6 Jaws, 12" Diam, Self Centering Manual Lathe Chuck Front Mount, Adjustable, 1,725 Max RPM, 4.14" Through Hole Diam, Forged Steel B8126S - 56029986
Brand: Buck Chuck Company- SKU:
- 56029986
- ID:
- 450957
$5,756.98
Buck Chuck Company 6 Jaws, 12" Diam, Self Centering Manual Lathe Chuck Front Mount, Adjustable, 1,725 Max RPM, 4.14" Through Hole Diam, Forged Steel
Manufacturer Part #: B8126S
S/N: 56029986
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Chuck Type | Self-Centering |
| Chuck Diameter (Inch) | 12 |
| Number Of Jaws | 6 |
| Body Material | Forged Steel |
| Adjustable | Yes |
| Reversible Jaws | Non-Reversible |
| Maximum Jaw Capacity (Inch) | 10.0400 (External), 9.9400 (Internal) |
| Maximum Rpm | 1725 |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 3.9000 |
| Series | ATSC |
| Contents | Allen Wrench, Internal & External Solid Jaws, Set of Mounting Bolts, Spring-Loaded T-Wrench |
| Minimum Jaw Capacity (Inch) | 0.7900 (External), 3.3500 (Internal) |
| Through-Hole Diameter (Decimal Inch) | 4.1400 |
