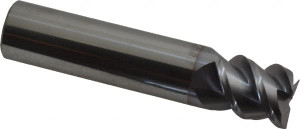

Accupro 5/8", 3/4" LOC, 5/8" Shank Diam, 3" OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 60° Helix, Centercutting, Right Hand Cut, Right Hand Flute 360S6250C4 - 56210545
Brand: Accupro- SKU:
- 56210545
- ID:
- 627169
$157.45
Accupro 5/8", 3/4" LOC, 5/8" Shank Diam, 3" OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 60° Helix, Centercutting, Right Hand Cut, Right Hand Flute
Manufacturer Part #: 360S6250C4
S/N: 56210545
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.75 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.625 |
| Overall Length (Decimal Inch) | 3 |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 60 |
| Coating/Finish | TiCN |
| Variable Helix | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Stub |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Shank Diameter Tolerance | +0.0001/-0.0004 in |
| UNSPSC Code | 27112803 |
