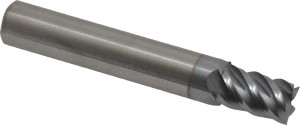

Accupro 9/32", 7/16" LOC, 5/16" Shank Diam, 2" OAL, 5 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 45° Helix, Centercutting, Right Hand Cut, Right Hand Flute 545S2812C4 - 56211006
Brand: Accupro- SKU:
- 56211006
- ID:
- 625787
$35.21
Accupro 9/32", 7/16" LOC, 5/16" Shank Diam, 2" OAL, 5 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 45° Helix, Centercutting, Right Hand Cut, Right Hand Flute
Manufacturer Part #: 545S2812C4
S/N: 56211006
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.2813 |
| Mill Diameter (Inch) | 9/32 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.4375 |
| Length of Cut (Inch) | 7/16 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2 |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 45 |
| Coating/Finish | TiCN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Stub |
| Length Of Cut Range (Decimal Inch) | 0.3000 - 0.5000 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| UNSPSC Code | 27112803 |
