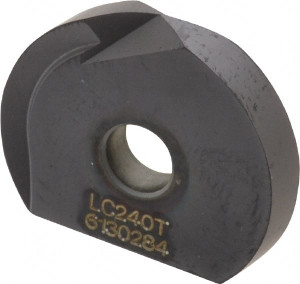

LMT Fette WPR 1000-CF LCP40M BN Carbide Milling Insert TiAlN/TiN Finish, 0.16" Thick 6130284 - 56445299
Brand: LMT Fette- SKU:
- 56445299
- ID:
- 661619
$117.47
LMT Fette WPR 1000-CF LCP40M BN Carbide Milling Insert TiAlN/TiN Finish, 0.16" Thick
Manufacturer Part #: 6130284
S/N: 56445299
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | WPR |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose Rounded Tip |
| Manufacturer Grade | LCP40M |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1600 |
| Thickness (mm) | 4.06 |
| Coating/Finish | TiAIN, Al2 Plus |
| Insert Size Code | 1000 |
| Material Grade | C5, C6 |
| Width (Inch) | 1 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (mm) | 25.40 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 1.0000+ |
| Insert Hand | Right Hand |
| Series | WPR |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 10.0000 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | WPR 1000-CF LCP40M |
| Iso Code | WPR 1000-CF LCP40M |
| Standards | ISO |
| Manufacturers Catalog Number | 6130284 |
| Chip Breaker | CF |
| Material Application | Steel, Stainless Steel |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (mm - 2 Decimals) | 25.40 |
| Multi-Use Tool | No |
