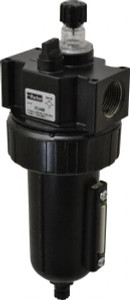

Parker Hannifin 3/4" NPT, 250 Max psi Standard Mist Lubricator Metal Bowl with Sight Glass, Zinc Body, 90 CFM, 175°F Max Temp, 3.24" Wide x 9.27" High 07L44BE - 56602485
Brand: Parker Hannifin Corporation- SKU:
- 56602485
- ID:
- 578870
$303.06
Parker Hannifin 3/4" NPT, 250 Max psi Standard Mist Lubricator Metal Bowl with Sight Glass, Zinc Body, 90 CFM, 175°F Max Temp, 3.24" Wide x 9.27" High
Manufacturer Part #: 07L44BE
S/N: 56602485
UNSPSC: 27131604
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Lubricator Type | Standard |
| Port Size NPT | 3/4 |
| End Connections | NPT |
| Body Material | Zinc |
| Bowl Material | Metal |
| Cubic Feet per Minute | 90 |
| Drain Type | Manual |
| Seal Material | Nitrile |
| Series | 07L |
| Overall Width (Decimal Inch - 4 Decimals) | 3.2400 |
| Bowl Capacity | 6 oz |
| Overall Diameter (Mm - 4 Decimals) | 83.00 |
| Overall Diameter (Decimal Inch - 4 Decimals) | 3.2500 |
| Overall Diameter (Frac) | 3-1/4 |
| Minimum Working Temperature (Deg C) | 0.00 |
| Modular Connection | Yes |
| Minimum Working Temperature (Deg F) | 32.00 |
| Includes Sight Glass | Yes |
| Overall Height (Decimal Inch) | 9.2700 |
| Bowl Guard | No |
| Additional Information | Mist Lubricator |
