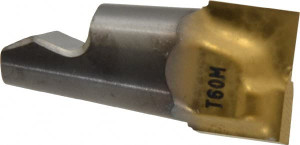

Seco Tools MM160.630M06 T60M Carbide End Mill Tip Insert TiAlN/TiN Finish, 2 Flutes, 0.63" Diam, 0.433" Depth, Series Minimaster 74017035 - 56933609
Brand: Seco Tools- SKU:
- 56933609
- ID:
- 663992
$226.25
Seco Tools MM160.630M06 T60M Carbide End Mill Tip Insert TiAlN/TiN Finish, 2 Flutes, 0.63" Diam, 0.433" Depth, Series Minimaster
Manufacturer Part #: 74017035
S/N: 56933609
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Milling Tip Type | Slotting |
| Milling Tip Style | MM16 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Maximum Depth of Cut (mm) | 11 |
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Tool Material | Carbide |
| Manufacturer Grade | T60M |
| Insert Hand | Right Hand |
| Chipbreaker | M06 |
| Series | MM16 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0000 |
| Cutting Width (Decimal Inch) | 0.6300in |
| Functional Length (mm) | 13.60 |
| Functional Length (Decimal Inch) | 0.5350 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Standards | ANSI |
| Milling Tip Full Description | MM16-0.630-M06 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 74017035 |
| Chamfer Angle | 0degree |
| Overall Length (Decimal Inch) | 0.5350in |
| Insert Size | 0.630 |
| Helix Angle | 0 |
| Coolant Through | No |
| Material Grade | C5 |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4330in |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 2 |
| Extension From Holder (Inch) | 0.5350 |
