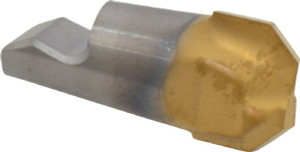

Seco Tools MM160.63045.16E06 T60M Carbide Chamfer Mill Tip Insert TiAlN/TiN Finish, 2 Flutes, 0.63" Diam, 0.161" Depth, Series Minimaster 74004992 - 56933765
Brand: Seco Tools- SKU:
- 56933765
- ID:
- 663993
$249.20
Seco Tools MM160.63045.16E06 T60M Carbide Chamfer Mill Tip Insert TiAlN/TiN Finish, 2 Flutes, 0.63" Diam, 0.161" Depth, Series Minimaster
Manufacturer Part #: 74004992
S/N: 56933765
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Milling Tip Type | Chamfer |
| Milling Tip Style | MM16 |
| Maximum Depth of Cut (Decimal Inch) | 0.1540 |
| Maximum Depth of Cut (mm) | 3.9 |
| Cutting Diameter (Decimal Inch) | 0.3030 |
| Tool Material | Carbide |
| Manufacturer Grade | T60M |
| Insert Hand | Right Hand |
| Chipbreaker | E06 |
| Series | MM16 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.2760 |
| Cutting Width (Decimal Inch) | 0.63 |
| Functional Length (mm) | 13.25 |
| Functional Length (Decimal Inch) | 0.5220 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Standards | ANSI |
| Milling Tip Full Description | MM16-0.630-45.16-E06 |
| Lead Angle | 45 |
| Manufacturers Catalog Number | 74004992 |
| Chamfer Angle | 45 |
| Overall Length (Decimal Inch) | 0.522 |
| Insert Size | 0.630-45.16 |
| Coolant Through | No |
| Material Grade | C5 |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1540 |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 2 |
| Extension From Holder (Inch) | 0.5220 |
