Seco Tools 150.10-3R6-12 T25M Carbide Cutoff Insert TiC/TiCN/TiN Finish, 6° RH Lead Angle, 0.122" Cutting Width, 0.008" Corner Radius, Series 150.10 74024843 - 56944663
Brand: Seco Tools- SKU:
- 56944663
- ID:
- 647922
$30.74

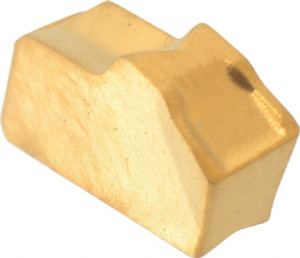

Seco Tools 150.10-3R6-12 T25M Carbide Cutoff Insert TiC/TiCN/TiN Finish, 6° RH Lead Angle, 0.122" Cutting Width, 0.008" Corner Radius, Series 150.10
Manufacturer Part #: 74024843
S/N: 56944663
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T25M |
| Cutting Width (Decimal Inch) | 0.1220 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 6 |
| Relief Angle | 6.00 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | 12 |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-Off |
| Series | 150.10 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.3540 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | OD |
| Width Tolerance | 0.003 |
| Material Grade | C5 |
| MSC/Manufacturer Number | 150.10-3R6-12 |
| Coating/Finish | TiC, TiCN, TiN |
| Single Or Double End | Single |
