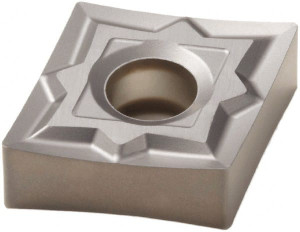

Seco Tools CNMP432-MF1-24 890 Carbide Turning Insert Uncoated, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond 74050198 - 56982960
Brand: Seco Tools- SKU:
- 56982960
- ID:
- 676429
$18.38
Seco Tools CNMP432-MF1-24 890 Carbide Turning Insert Uncoated, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond
Manufacturer Part #: 74050198
S/N: 56982960
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMP |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80degree |
| Manufacturer Grade | 890 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CNMP-MF1 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Maximum Depth of Cut (Decimal Inch) | 0.4764 |
| Insert Holding Method | Clamp, Pin, Lever Lock |
| Width (Inch) | 1/2in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material Code | M, K, N, H |
| Iso Code | CNMG120408-MF1 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 74050198 |
| Material Grade | S10, S20 |
| Proprietary Coating Designation | Uncoated |
| Lead Angle | 80degree |
| Coating Classification | Uncoated |
| Chip Breaker | MF1 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CNMP432-MF1 |
| Width (Decimal Inch - 4 Decimals) | 0.5000in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
