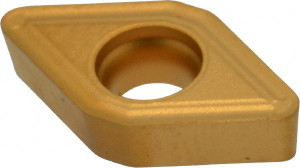

Seco Tools DCMT21.52-F2 TP40 Carbide Turning Insert TiC/TiCN/TiN Finish, 1/4" Inscribed Circle, 1/32" Corner Radius, 55° Diamond 74018658 - 56983844
Brand: Seco Tools- SKU:
- 56983844
- ID:
- 676432
$16.71
Seco Tools DCMT21.52-F2 TP40 Carbide Turning Insert TiC/TiCN/TiN Finish, 1/4" Inscribed Circle, 1/32" Corner Radius, 55° Diamond
Manufacturer Part #: 74018658
S/N: 56983844
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55degree |
| Manufacturer Grade | TP40 |
| Coating/Finish | TiC, TiCN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | DCMT-F2 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | Diamond 55 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4in |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6142 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Primary Workpiece Material Code | P, M |
| Iso Code | DCMT070208-F2 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 74018658 |
| Material Grade | P40, M35, M40 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 55degree |
| Coating Classification | CVD |
| Chip Breaker | F2 |
| Cutting Edge Style | Honed |
| Industry Standard Number | DCMT21.52-F2 |
| Width (Decimal Inch - 4 Decimals) | 0.2500in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Turning, Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.52 |
