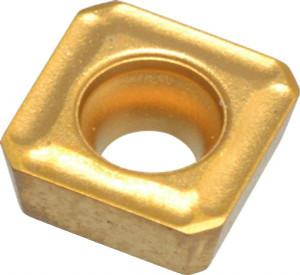

Seco Tools SPMX0602AP-75 T25M Carbide Milling Insert TiCN/TiC/TiCN/TiN Finish, 0.094" Thick x 1/4" Wide 74016162 - 57005506
Brand: Seco Tools- SKU:
- 57005506
- ID:
- 662629
$24.70
Seco Tools SPMX0602AP-75 T25M Carbide Milling Insert TiCN/TiC/TiCN/TiN Finish, 0.094" Thick x 1/4" Wide
Manufacturer Part #: 74016162
S/N: 57005506
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SPMX |
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | T25M |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
| Coating/Finish | TiCN |
| Relief Angle | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Insert Size Code | 0602 |
| Material Grade | Medium Grain |
| Width (Inch) | 1/4 |
| Length (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Neutral |
| Series | SPMX-06 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1024 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2500 |
| Rake | Neutral |
| Secondary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Secondary Workpiece Material Code | P, M, S |
| Ansi Code | SPMX0602AP-75 |
| Iso Code | SPMX0602AP-75 |
| Standards | ISO |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SPMX0602AP-75 |
| Cutter Series Compatibility | R215.49-3, R335.16-3 |
| Chip Breaker | 75 |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2500 |
