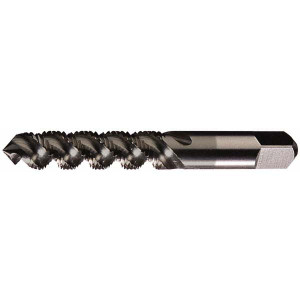

Cleveland Twist Drill Spiral Flute Tap: 5/16-18, UNC, 3 Flute, Plug, 2B Class of Fit, High Speed Steel, Oxide Finish 0.69" Thread Length, Right Hand Flute, Right Hand Thread, H3, Series 1093BO C58444 - 57212995
Brand: Cleveland Twist Drill- SKU:
- 57212995
- ID:
- 769180
$38.68
Cleveland Twist Drill Spiral Flute Tap: 5/16-18, UNC, 3 Flute, Plug, 2B Class of Fit, High Speed Steel, Oxide Finish 0.69" Thread Length, Right Hand Flute, Right Hand Thread, H3, Series 1093BO
Manufacturer Part #: C58444
S/N: 57212995
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 5/16-18 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Aluminum & Non-Ferrous Metal, Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 52 |
| Oversize | No |
| Threads per Inch | 18 |
| Overall Length (Inch) | 2-23/32 |
| Thread Length (Decimal Inch) | 0.6900 |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Shank Diameter (mm) | 8.08 |
| Neck Length (Decimal Inch) | 0.4500 |
| Square Length (mm) | 9.52 |
| Square Length (Decimal Inch) | 0.3750 |
| Square Size (Decimal Inch) | 0.2380 |
| Square Size (mm) | 6.05 |
| Flute Style | Fast |
| Series | 1093BO |
