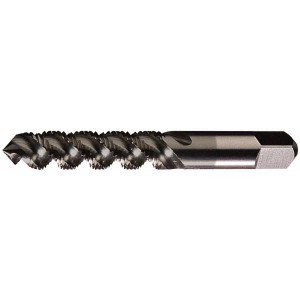

Cleveland Twist Drill Spiral Flute Tap: #10-24, UNC, 3 Flute, Bottoming, 2B Class of Fit, High Speed Steel, Oxide Finish 0.5" Thread Length, Right Hand Flute, Right Hand Thread, H3, Series 1094BO C58437 - 57213134
Brand: Cleveland Twist Drill- SKU:
- 57213134
- ID:
- 769131
$31.23
Cleveland Twist Drill Spiral Flute Tap: #10-24, UNC, 3 Flute, Bottoming, 2B Class of Fit, High Speed Steel, Oxide Finish 0.5" Thread Length, Right Hand Flute, Right Hand Thread, H3, Series 1094BO
Manufacturer Part #: C58437
S/N: 57213134
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #10-24 |
| Thread Standard | UNC |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Aluminum & Non-Ferrous Metal, Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 52 |
| Oversize | No |
| Threads per Inch | 24 |
| Overall Length (Inch) | 2-3/8 |
| Thread Length (Decimal Inch) | 0.5000 |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Shank Diameter (mm) | 4.93 |
| Neck Length (Decimal Inch) | 0.3900 |
| Square Length (mm) | 6.35 |
| Square Length (Decimal Inch) | 0.2500 |
| Square Size (Decimal Inch) | 0.1520 |
| Square Size (mm) | 3.86 |
| Flute Style | Fast |
| Series | 1094BO |
