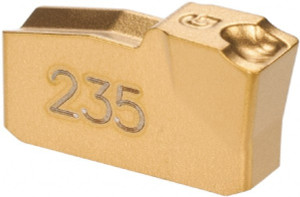

Sandvik Coromant N151.2-A125-30-5G 235 Carbide Grooving Insert TiCN/TiN Finish, Neutral, 1/8" Cutting Width, Series T-Max Q-Cut 5737514 - 57332777
Brand: Sandvik Coromant- SKU:
- 57332777
- ID:
- 651480
$28.82
Sandvik Coromant N151.2-A125-30-5G 235 Carbide Grooving Insert TiCN/TiN Finish, Neutral, 1/8" Cutting Width, Series T-Max Q-Cut
Manufacturer Part #: 5737514
S/N: 57332777
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N151.2 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Cutting Width (mm) | 3.17 |
| Insert Hand | Neutral |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 235 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Corner Radius (mm) | 0.25 |
| Rake | Neutral |
| Insert Size | 30 |
| Cutting Width (Inch) | 1/8 |
| Cutting Height (mm) | 6.78 |
| Cutting Height (Decimal Inch) | 0.2672 |
| Multi-use Tool | Yes |
| Series | T-Max Q-Cut |
| Coating Process | CVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.2150 |
| Iso Code | N151.2-A125-30-5G 235 |
| Maximum Corner Radius (Decimal Inch) | 0.0140 |
| Minimum Corner Radius (Decimal Inch) | 0.0060 |
| Manufacturers Catalog Number | N151.2-A125-30-5G 235 |
| Overall Width (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.2672 |
| UNSPSC Code | 23242105 |
| Chip Breaker | 5G |
| Insert Seat Size | 30 |
| Overall Width (mm) | 3.17 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Coating/Finish | TiCN/TiN |
