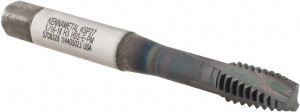

Kennametal Spiral Flute Tap: 5/16-18 UNC, 2 Flutes, Modified Bottoming, 3B Class of Fit, Vanadium High Speed Steel, AlCrTiN Coated 12.4 mm Thread Length, 2-23/32" OAL, Right Hand Thread, H3, Series T692 5708328 - 57449001
Brand: Kennametal- SKU:
- 57449001
- ID:
- 770688
$81.07
Kennametal Spiral Flute Tap: 5/16-18 UNC, 2 Flutes, Modified Bottoming, 3B Class of Fit, Vanadium High Speed Steel, AlCrTiN Coated 12.4 mm Thread Length, 2-23/32" OAL, Right Hand Thread, H3, Series T692
Manufacturer Part #: 5708328
S/N: 57449001
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 5/16-18 |
| Thread Standard | UNC |
| Chamfer | Modified Bottoming |
| Material | Vanadium High Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Coating/Finish | AlCrTiN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Nickel Alloy |
| Number Of Flutes | 2 |
| Flute Direction | Right Hand |
| Helix Angle | 11 |
| Overall Length (Inch) | 2-23/32 |
| Thread Length (Decimal Inch) | 0.4900 |
| Thread Length (mm) | 12.40 |
| Overall Length (Decimal Inch) | 2.7200 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Shank Diameter (mm) | 8.08 |
| Neck Length (Decimal Inch) | 0.6400 |
| Tapping Depth (Decimal Inch) | 1.1300 |
| Tapping Depth (mm) | 29.00 |
| Flute Style | Slow |
| Series | T692 |
