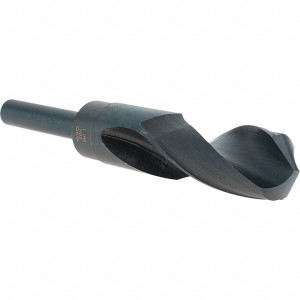

Cle-Force 1-1/16" 118° 1/2" Shank Oxide Finish High Speed Steel Silver & Deming Reduced Shank Drill Bit Straight Shank, 6" OAL, 79.38mm Flute Length, Spiral Flute, Series 1680 C68665 - 57633414
Brand: Cle-Force- SKU:
- 57633414
- ID:
- 741870
$89.79
Cle-Force 1-1/16" 118° 1/2" Shank Oxide Finish High Speed Steel Silver & Deming Reduced Shank Drill Bit Straight Shank, 6" OAL, 79.38mm Flute Length, Spiral Flute, Series 1680
Manufacturer Part #: C68665
S/N: 57633414
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 1-1/16 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Tool Material | High-Speed Steel |
| Drill Point Angle | 118 |
| Point Type | Standard |
| Shank Type | Straight-Cylindrical |
| Flute Length (mm) | 79.38 |
| Overall Length (Inch) | 6 |
| Coating/Finish | Coated |
| Series | 1680 |
| Drill Bit Size (Decimal Inch) | 1.0625 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0015 in |
| Tool Performance | General Purpose |
| Drill Length Type | Reduced Shank |
| Maximum Drilling Depth (mm) | 79.38 |
| Shank Length (Decimal Inch) | 2.2500 |
| Shank Length (mm) | 57.15 |
| Primary Workpiece Material | Cast Iron, Steel |
| Primary Workpiece Material Code | K, P |
| Coolant | No |
