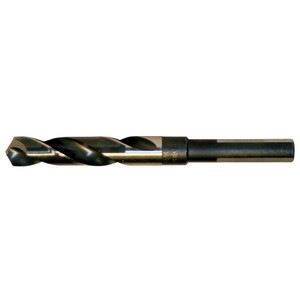

Cle-Line 19mm 118° 1/2" Shank Oxide Finish High Speed Steel Silver & Deming Reduced Shank Drill Bit Flats on Shank, 6" OAL, 3.1102" Flute Length, Split Point, Spiral Flute, Series 1877M C21182 - 57645624
Brand: Cle-Line- SKU:
- 57645624
- ID:
- 741903
$70.57
Cle-Line 19mm 118° 1/2" Shank Oxide Finish High Speed Steel Silver & Deming Reduced Shank Drill Bit Flats on Shank, 6" OAL, 3.1102" Flute Length, Split Point, Spiral Flute, Series 1877M
Manufacturer Part #: C21182
S/N: 57645624
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 19.00 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Tool Material | High-Speed Steel |
| Drill Point Angle | 118 |
| Point Type | Split |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 79.00 |
| Overall Length (Inch) | 6 |
| Coating/Finish | Coated |
| Series | 1877M |
| Number Of Flats | 3 |
| Drill Bit Size (Decimal Inch) | 0.7480 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Flute Length (Decimal Inch) | 3.1102 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| Tool Performance | General Purpose |
| Drill Length Type | Reduced Shank |
| Maximum Drilling Depth (Decimal Inch) | 3.1102 |
| Maximum Drilling Depth (mm) | 79.00 |
| Shank Length (Decimal Inch) | 2.8740 |
| Primary Workpiece Material | Cast Iron, Steel |
| Primary Workpiece Material Code | K, P |
| Coolant | No |
| UNSPSC Code | 23241635 |
