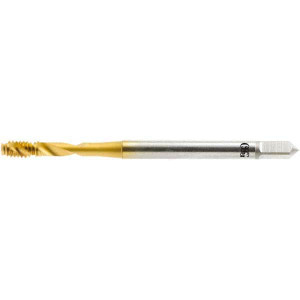

OSG Spiral Flute Tap: UNF, 3 Flute, Modified Bottoming, 3B Class of Fit, Vanadium High-Speed Steel, TiN Finish 100.00 mm OAL, Right Hand Flute, Right Hand Thread, H3, Series 16450 1645038243 - 57690836
Brand: OSG USA, INC.- SKU:
- 57690836
- ID:
- 770861
$93.67
OSG Spiral Flute Tap: UNF, 3 Flute, Modified Bottoming, 3B Class of Fit, Vanadium High-Speed Steel, TiN Finish 100.00 mm OAL, Right Hand Flute, Right Hand Thread, H3, Series 16450
Manufacturer Part #: 1645038243
S/N: 57690836
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 3/8-24 |
| Thread Standard | UNF |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Alloy Steel, Cast Iron, High-Carbon Steel, Low-Carbon Steel, Medium-Carbon Steel, Stainless Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Threads per Inch | 24 |
| Thread Length (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.5430 |
| Overall Length (mm) | 100.00 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Neck Length (Decimal Inch) | 1.3780 |
| Tapping Depth (Decimal Inch) | 1.2500 |
| Square Length (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.2860 |
| Flute Style | Spiral |
| Series | 16450 |
| UNSPSC Code | 27112806 |
