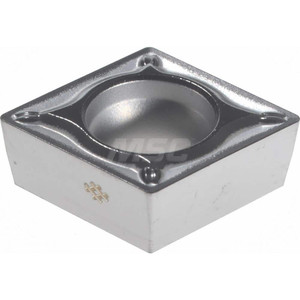

Sumitomo CCMT32.51ESU AC6030M Carbide Turning Insert 3/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond 196CBPE - 57971988
Brand: Sumitomo- SKU:
- 57971988
- ID:
- 677510
$14.23
Sumitomo CCMT32.51ESU AC6030M Carbide Turning Insert 3/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond
Manufacturer Part #: 196CBPE
S/N: 57971988
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80.0 |
| Manufacturer Grade | AC6030M |
| Coating/Finish | Coated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | CCMT32.51ESU |
| Iso Code | CCMT09T304N-SU |
| Standards | ANSI, ISO 13399 |
| Chip Breaker | ESU |
| Insert Size Code | 32.51 |
