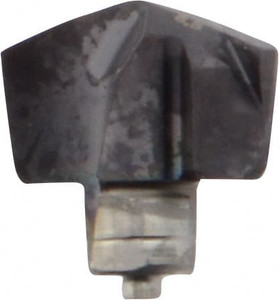

Iscar ICP0256 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 0.256" Diam, 0.169mm High, Through Coolant, Series ICP 5509300 - 58428814
Brand: Iscar- SKU:
- 58428814
- ID:
- 656776
$117.56
Iscar ICP0256 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 0.256" Diam, 0.169mm High, Through Coolant, Series ICP
Manufacturer Part #: 5509300
S/N: 58428814
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Decimal Inch) | 0.2560 |
| Cutting Diameter (mm) | 7.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | ICP |
| Coating Process | PVD |
| Insert Geometry | P |
| Insert Seat Size | 6.5 |
| Functional Length (Decimal Inch) | 0.1229 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Secondary Workpiece Material Code | M, K, S, H |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.169 |
| Height (mm) | 4.00 |
| Overall Length/Projection (Decimal Inch) | 0.1694 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | ICP 065 |
| Coolant Through | No |
| Flute Length (mm) | 3.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | ICP |
| Applications | Hole Making, Chamfering, Gundrills, Drilling |
| UNSPSC Code | 23242105 |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
